Floor-Level Safety

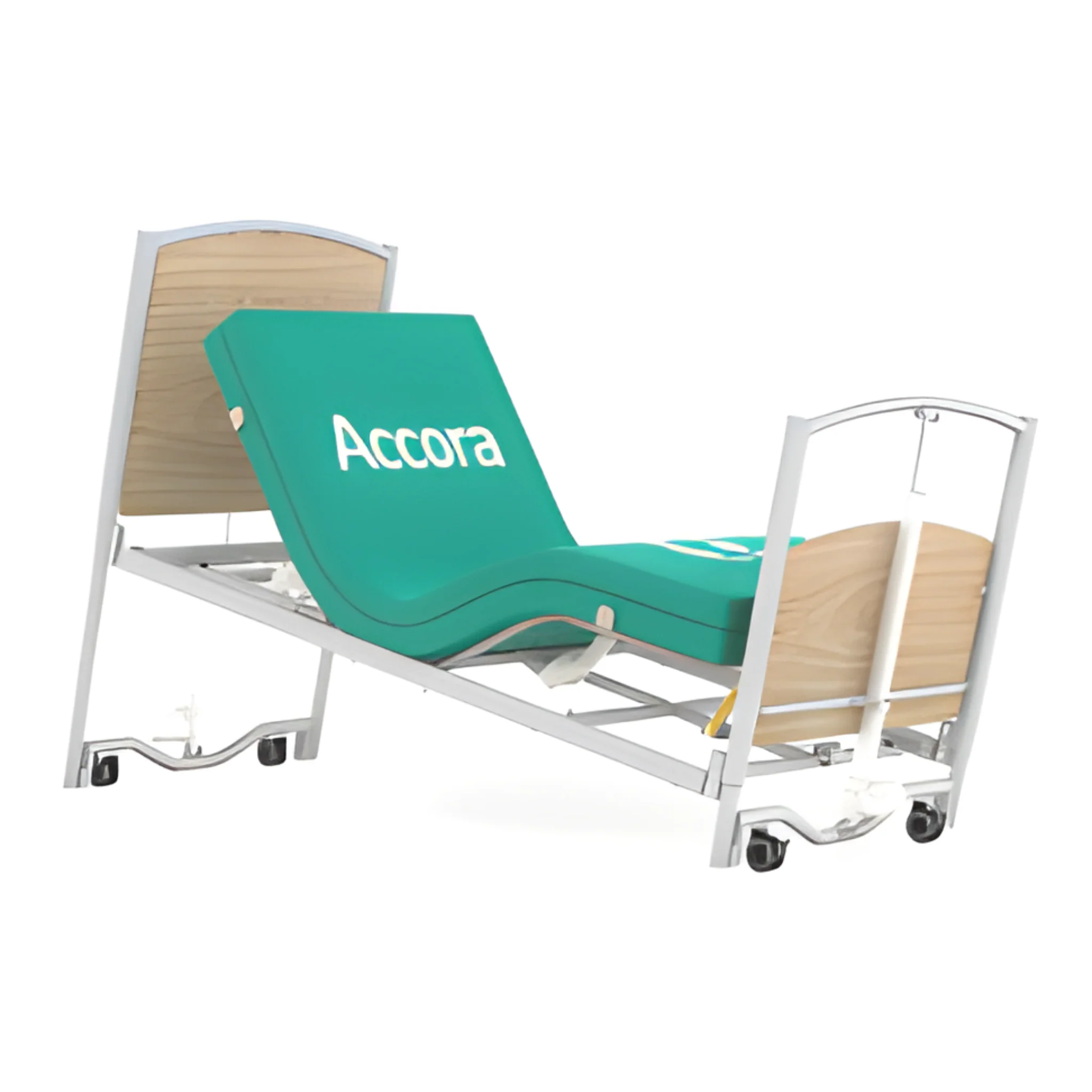

The Accora FloorBed® 1 is a floor-level nursing bed designed to minimize fall risk while maintaining full clinical functionality. The bed lowers to 71 mm (7.1 cm) from the floor, positioning it significantly closer to ground level than conventional profiling beds. This ultra-low height helps reduce the impact of accidental bed exits and associated injuries in care environments requiring enhanced safety management.

The system includes comprehensive profiling functions, supporting adjustable positioning for backrest and leg sections to accommodate clinical care and user comfort requirements. The profiling mechanism enables caregivers to adjust posture while maintaining stability and accessibility around the bed frame.

Engineered for healthcare, residential care, and assisted living environments, the FloorBed® 1 integrates low-height safety design with standard nursing bed functionality. Its structure supports safe patient handling while maintaining compatibility with typical care routines, mobility aids, and caregiver access requirements.

Features

Ultra-Low Floor Position

Lowers to a floor-level height of 71 mm (7.1 cm) to help reduce falls and injuries. The bed raises to 650 mm (65 cm) allowing carers to perform care tasks at a safer working height. Optional bed extension increases length by 200 mm (20 cm).

JuniorKit Compatibility

Compatible with the JuniorKit accessory system designed to meet BS EN 50637:2017 children’s bed standard. The FloorBed® 1 Plus offers a wider 1067 mm frame and can extend to 2134 mm length.

Head & Footboard Bumper Set BMHNE-0-FL4-000

Safety Sleeve SLE-0-FL4-000

Easy position adjustment to enable independent movement.

Profiling functions include:

Backrest with Auto-regression
Kneebreak
Trendelenburg 15°
Anti-Trendelenburg 15°

The handset is flexible enough to be used from either side of the bed. Its safety features include:

Lockout feature to prevent unintentional use
Auto-safety stop function to lower the bed safely

Specifications

Variations	FloorBed 1	FloorBed 1-Plus
User Groups
Adult Patients	Minimum height 146 cm	Minimum height 146 cm
Child Patients	Minimum height 75 cm, maximum height 155 cm	Minimum height 75 cm, maximum height 155 cm
General Specifications
Mattress Deck	Mesh Mattress Deck	Slate Mattress Platform
Mattress Size	80 × 36 in	80 × 42 in
Height Range	2.8 – 25.6 in	3.1 – 25.6 in
Profiling Sections	Four Section Profiling	Four Section Profiling
Trendelenburg / Anti-Trendelenburg	Yes	Yes
Wiring	Standard wiring	In-line wiring
Overall Dimensions	925 mm W × 2255 mm L (36.4" × 88.8")	925 mm W × 2255 mm L (36.4" × 88.8")
Bed Castors	4 × 75 mm with brake (3")	4 × 75 mm with brake (3")
Trapeze Lift Load	75 kg / 165 lbs	75 kg / 165 lbs
Safe Working Load	185 kg / 408 lbs	260 kg / 573 lbs
Maximum Patient Weight	150 kg / 330 lbs (24 st)	225 kg / 496 lbs
Audible Noise	Less than 60 dBA	Less than 60 dBA
Trendelenburg Angle	15°	15°
Ingress Protection	IPX4	IPX4
Expected Service Life	Typically 5 years	Typically 5 years
Weight
Bed Weight	85.1 kg / 188 lbs	85.1 kg / 188 lbs (excluding transport bracket)
Headboard	20.5 kg / 45 lbs	20.5 kg / 45 lbs
Footboard	19.2 kg / 42 lbs	19.2 kg / 42 lbs
Mattress Platform Head End	23.0 kg / 50 lbs	23.0 kg / 50 lbs
Mattress Platform Foot End	17.2 kg / 38 lbs	17.2 kg / 38 lbs
Environmental Conditions
Operating Temperature	+10°C to +40°C (50°F to 104°F)	+10°C to +40°C (50°F to 104°F)
Transport / Storage Temperature	-20°C to +50°C (-4°F to 122°F)	-20°C to +50°C (-4°F to 122°F)
Relative Humidity	30% – 75% (non-condensing)	30% – 75% (non-condensing)
Atmospheric Pressure	700 hPa – 1060 hPa	700 hPa – 1060 hPa
Electrical Specifications
Duty Cycle	Intermittent operation 2 min / 18 min pause	Intermittent operation 2 min / 18 min pause
Model Number	NSB-0-FL1-200	NSB-0-FL1-200
Supply Voltage	100 – 240 V	100 – 240 V
Supply Frequency	50 or 60 Hz	50 or 60 Hz
Included Accessories
Included	Oak finish, handset control, transport dolly	Oak finish, handset control, transport bracket
